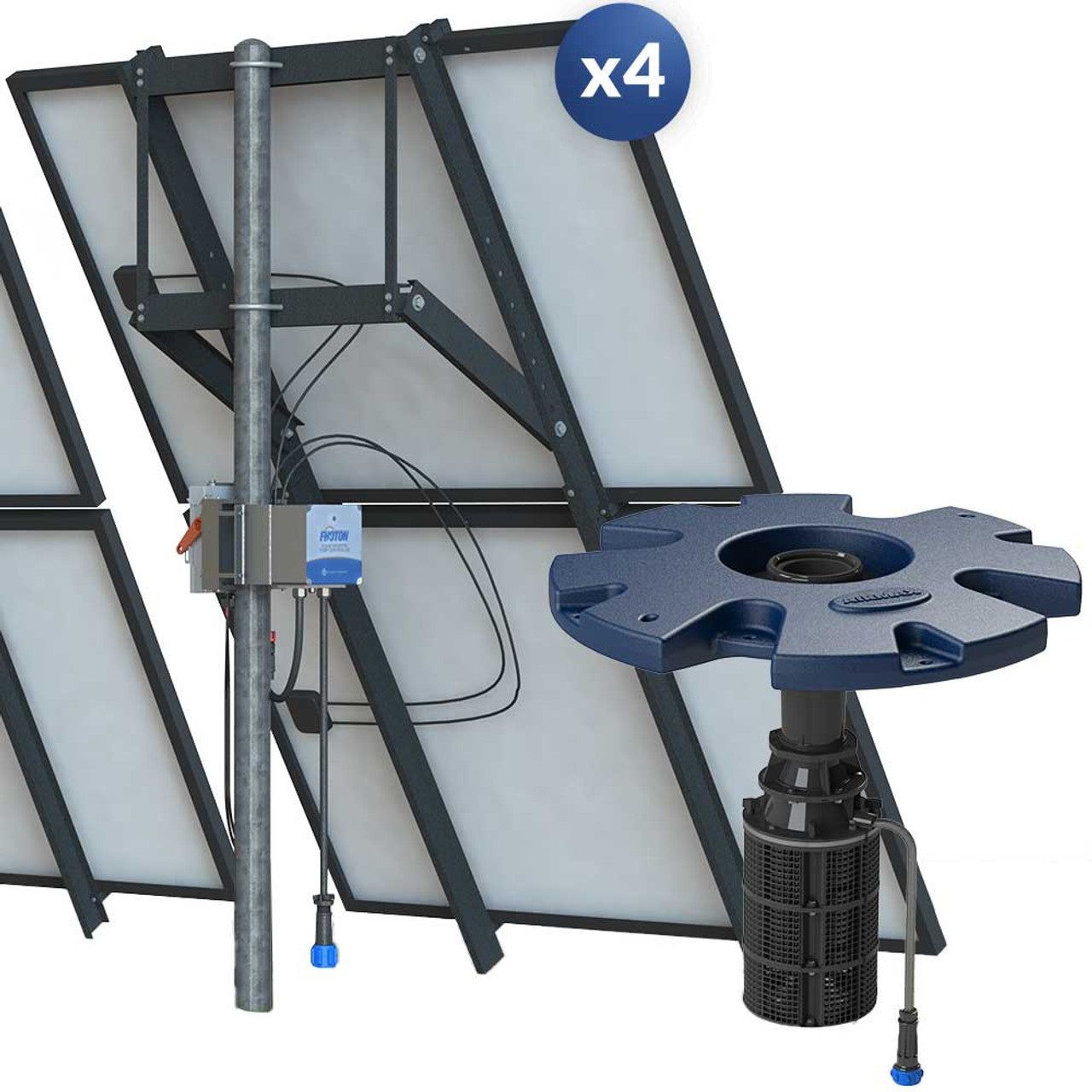

Airmax SolarSeries Pond Fountain

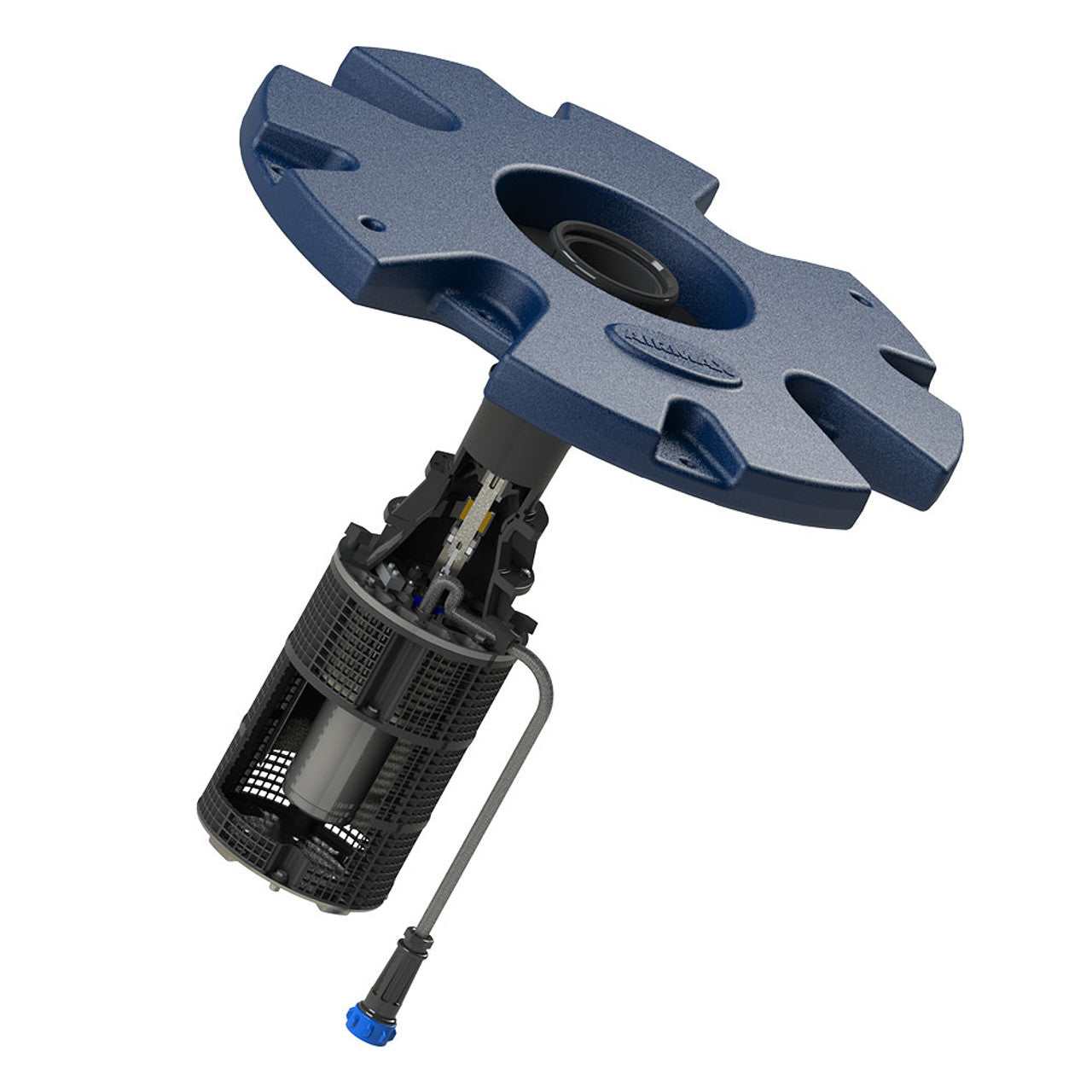

• Fountain Motor With Underwater Quick Disconnect
• 34" Fountain Float
• Power Cord With Strain Relief
• Airmax Fountain Disconnect Switch & Controller Assembly
• SolarSeries Solar Panels (4)

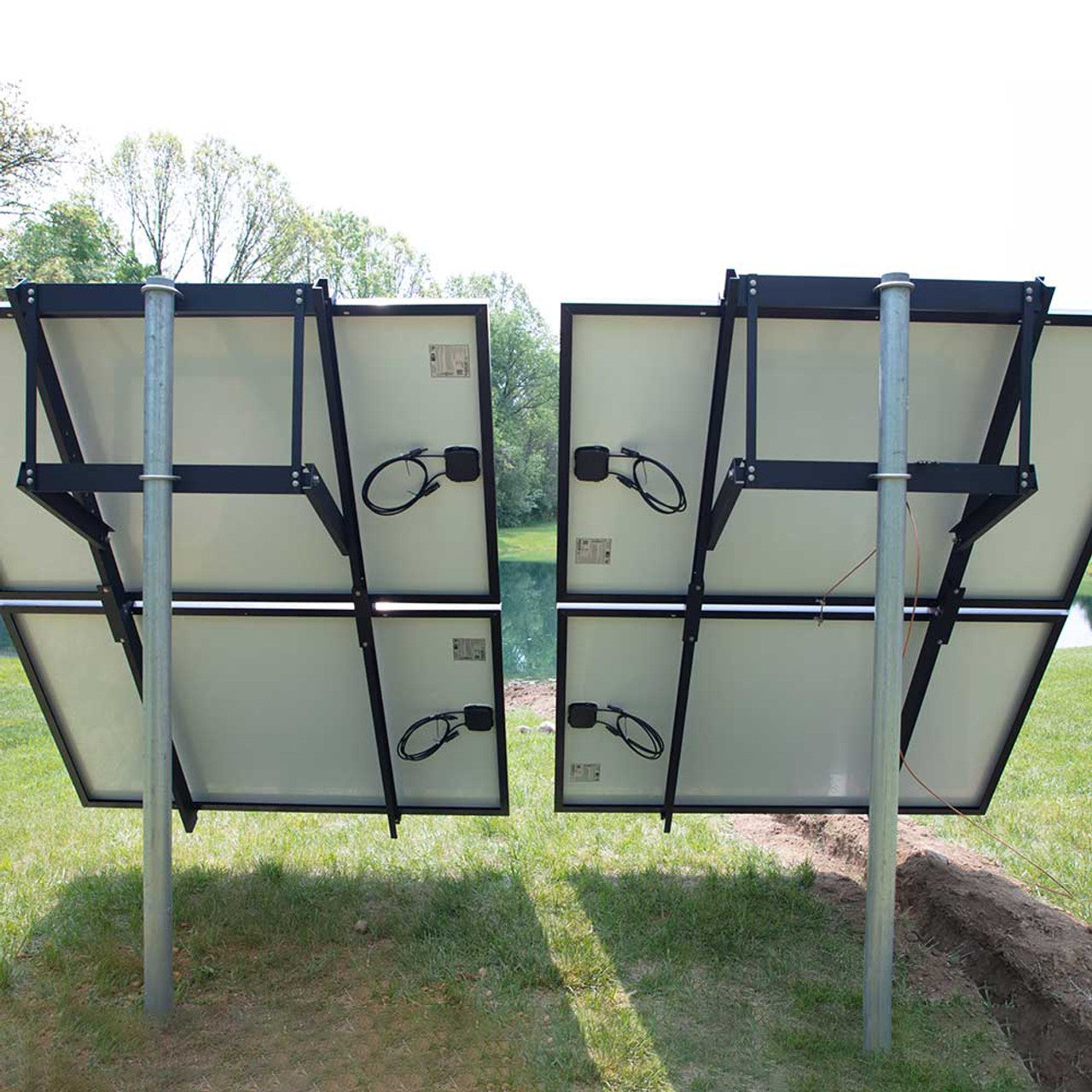

• EasyMount Assembly (2)
• Classic Spray Pattern

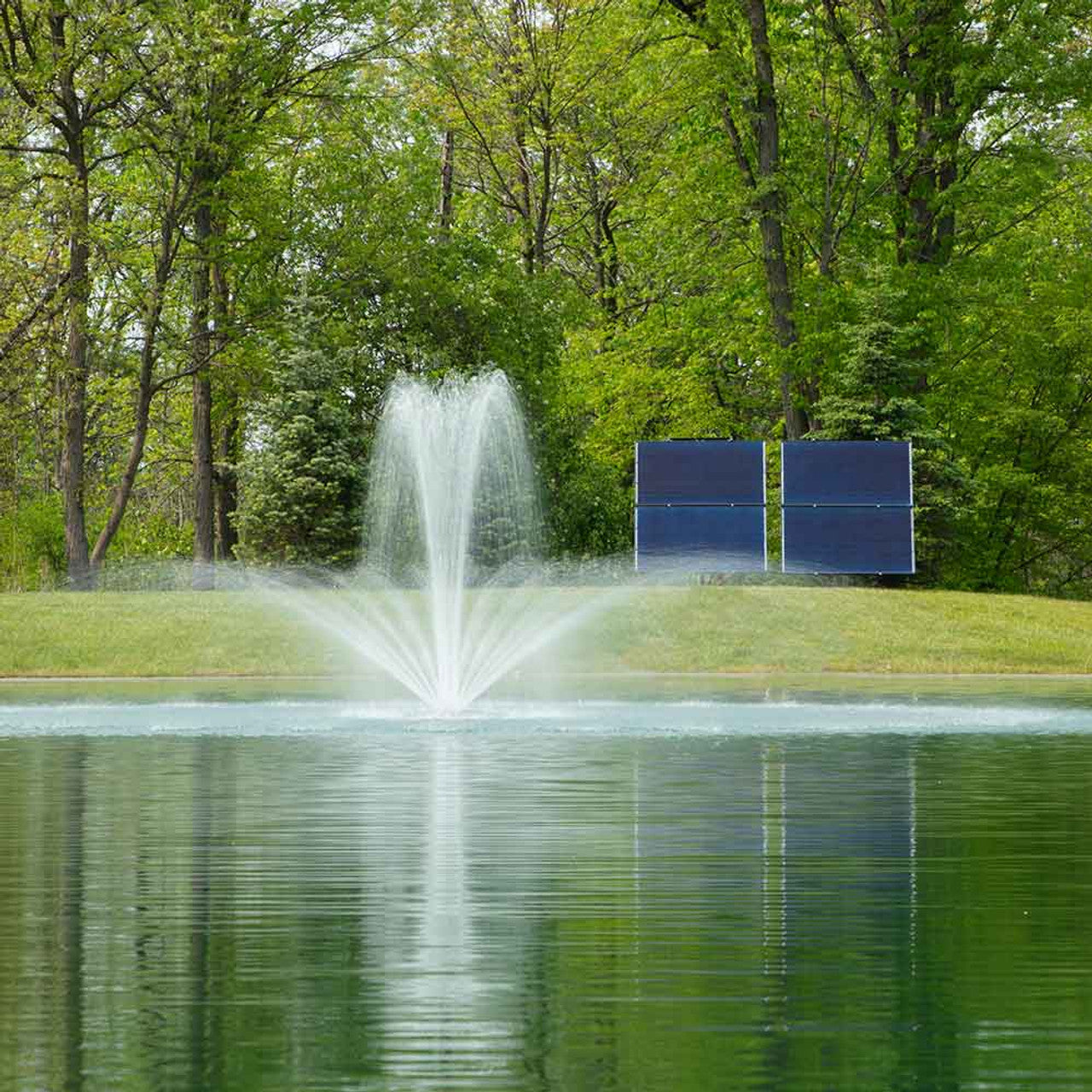

• Crown & Trumpet Spray Pattern
• Trumpet Spray Pattern

• Maintenance-Free:No ongoing maintenance required, saving you time and effort.
• Easy Installation: Simple setup with included instructions, typically taking only 15-20 minutes.
• Anchoring Instructions:Secure mooring lines to stakes or secondary weights in minutes.
• Long Warranty:3 Year warranty ensure durability and peace of mind.
• Made In The USA:Proudly built in the USA with high-quality standards.
• Zero Operating Costs:saving you time and money.
• Eco-Friendly: Help the environment by using clean, green energy from the sun.

Included Nozzles Spray Sizes :

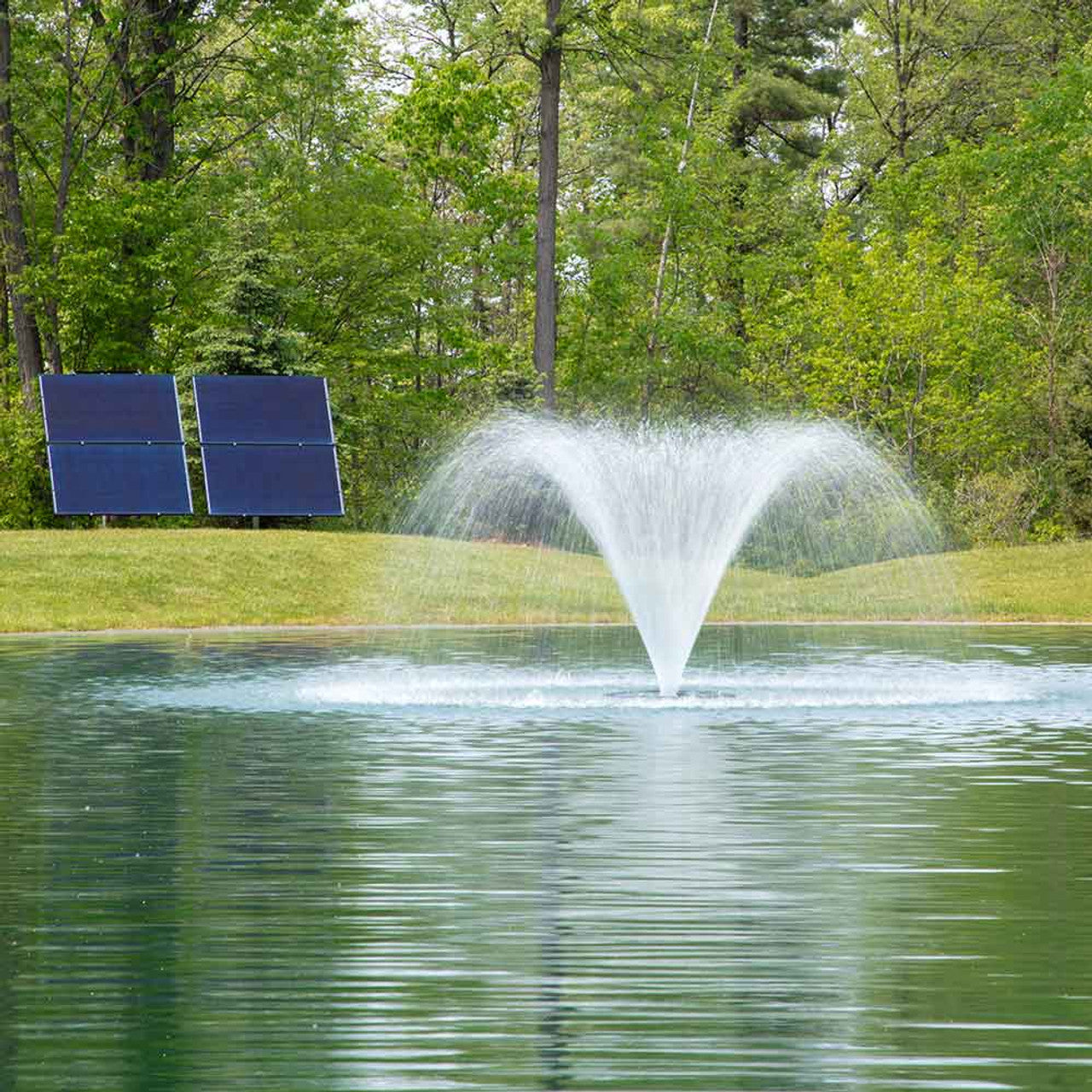

Classic : 7.5 ft High x 18 ft Wide

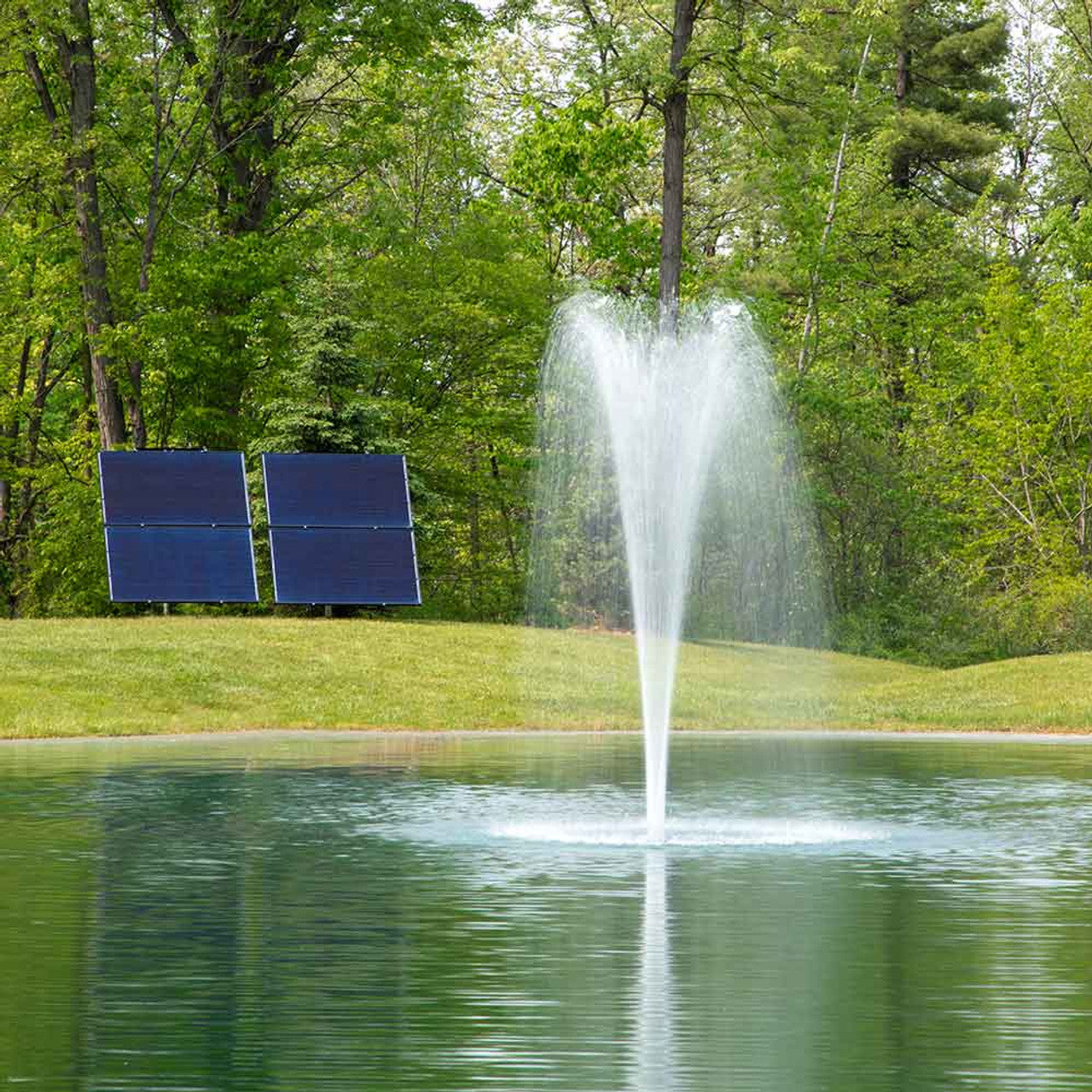

Trumpet : 12.5 ft High x 5 ft Wide

Crown : 4.5 ft High x 32 ft Wide

Recommended Pond Size : up to 1/2 to 1 Acre

Minimum Water Depth : 36 Inches

Flow Rate : minimum 13,500 gal/hr

Solar Panel Type : Monocrystalline (60 Cell)

Solar Panel Dimensions. : 75"L x 41.5"W x 1.57"H

Connector Type : MC4

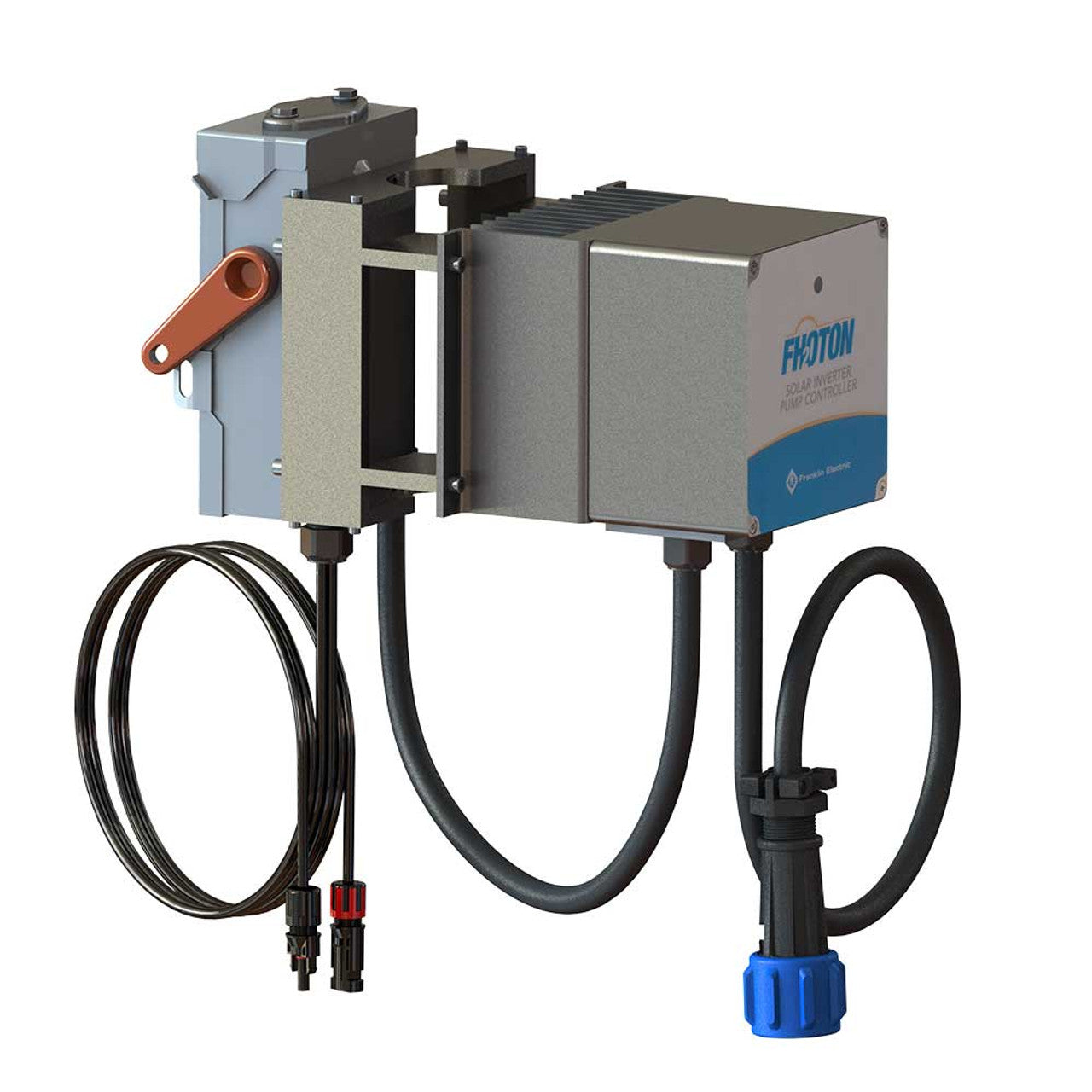

Fountain Disconnect Switch & Controller Assembly

The high-output solar panels send energy to the Airmax direct drive controller, which monitors the incoming power, allowing the fountain to operate at variable speeds as the sunlight intensity changes. For added safety, there is an external shut-off switch.

Power Unit, Electrical Components
& Mounting Hardware Warranty - 3 Year

Solar Panels Warranty - Limited 25 Year

Airmax SolarSeries Pond Fountain Manual

Airmax Fountain Nozzles Installation Instructions

We currently ship only to Lower 48 States of the United States. see Shipping Policy

Once you place an order, payment is pre-authorized and a confirmation with tracking will be emailed within 5–7 business days. Shipping may take longer during peak seasons due to manufacturer availability.

Items must be returned within 30 days after receiving your order. Items must be returned in the same condition in which they were received, be unused and include all the original packaging. see Refund Policy

Refunds are processed within 7 days from when we receive the item(s).

Question:

How do I choose a fountain?

Answer:

To choose a fountain, first decide if your goal is aeration, aesthetics, or both.

• aeration or both, choose an aerating fountain with higher flow and water circulation.

• aesthetics, consider your visual preferences, ensuring your pond meets depth requirements and the display size fits.

Question:

If I want to buy a fountain, how do I choose the horsepower?

Answer:

Horsepower determines the spray pattern size. Choose based on your pond’s depth, size, and budget. Most fountains fit ponds ¼ acre or larger, but avoid overspray. Select horsepower based on the look you want and what you can spend.

Question:

Do I need to hire someone to install my fountain?

Answer:

If there's no power source near your pond, hire a licensed electrician to install one. Once power is set up, fountain installation is simple: the unit floats, anchors with rope and cinder blocks, and plugs in via a submersible cord. Many customers install it themselves to save money, depending on available resources.

Question:

How do I choose between 110-120V and 220-240V?

Answer:

If your pond's power source is over 70 feet from the main breaker, use 210–240V to ensure consistent fountain performance. Lower voltage at long distances can cause the fountain to run poorly or shut off. Make sure your setup can handle higher voltage.

Question:

Are lights automatically included?

Answer:

Lights are sold separately but can be added anytime. They easily snap onto the fountain and are highly recommended.

Question:

Why is the power cord so expensive?

Answer:

The power cord cost is based on material and gauge size. It uses copper or stainless steel wire, ranging from 14-gauge to 4-gauge, depending on the fountain’s size and cord length.
