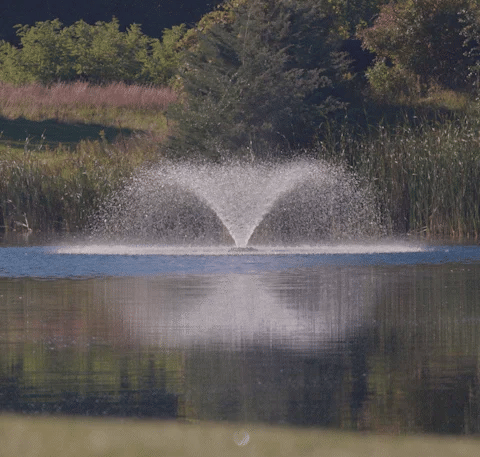

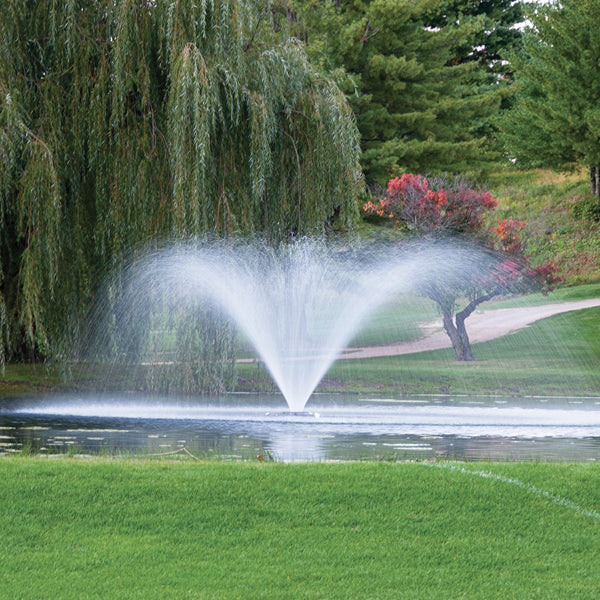

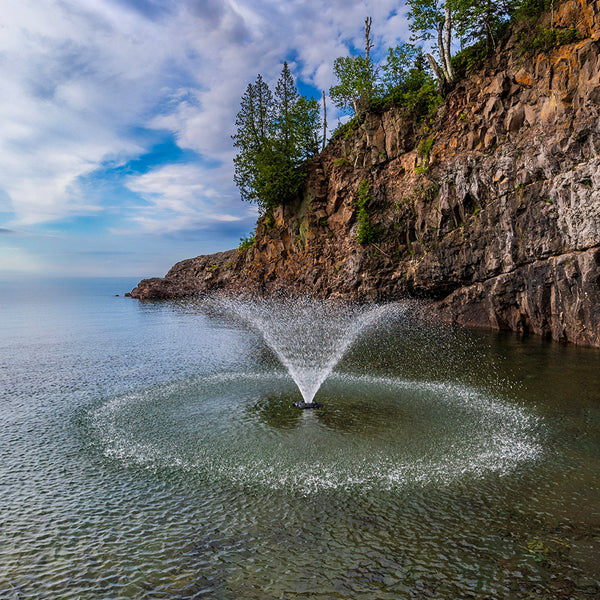

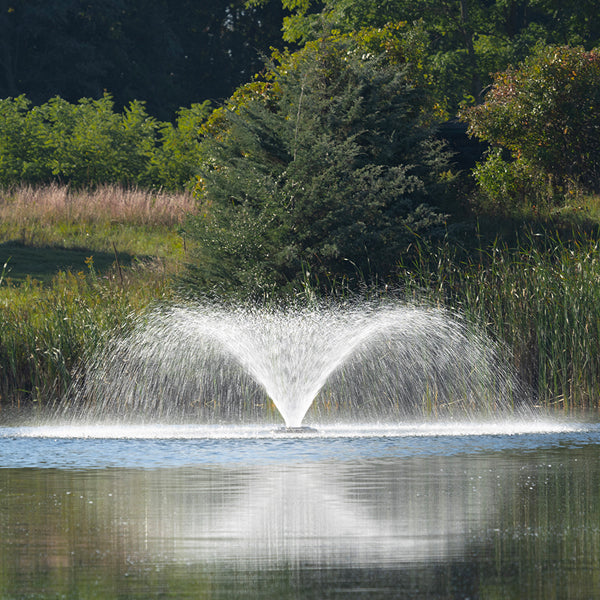

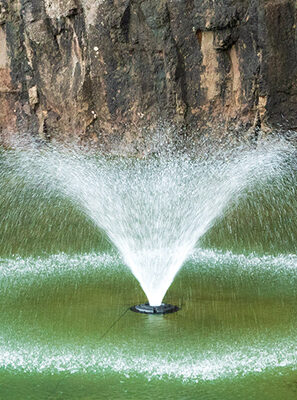

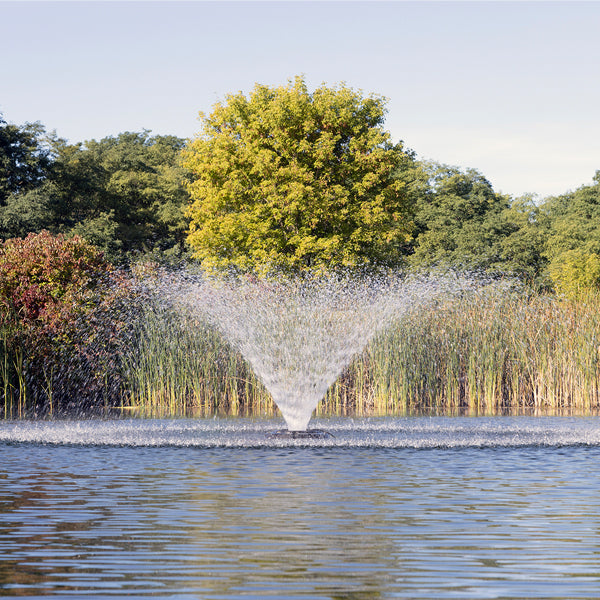

Kasco VFX Series Aerating Display Fountain for Ponds and Lakes

• Motor unit

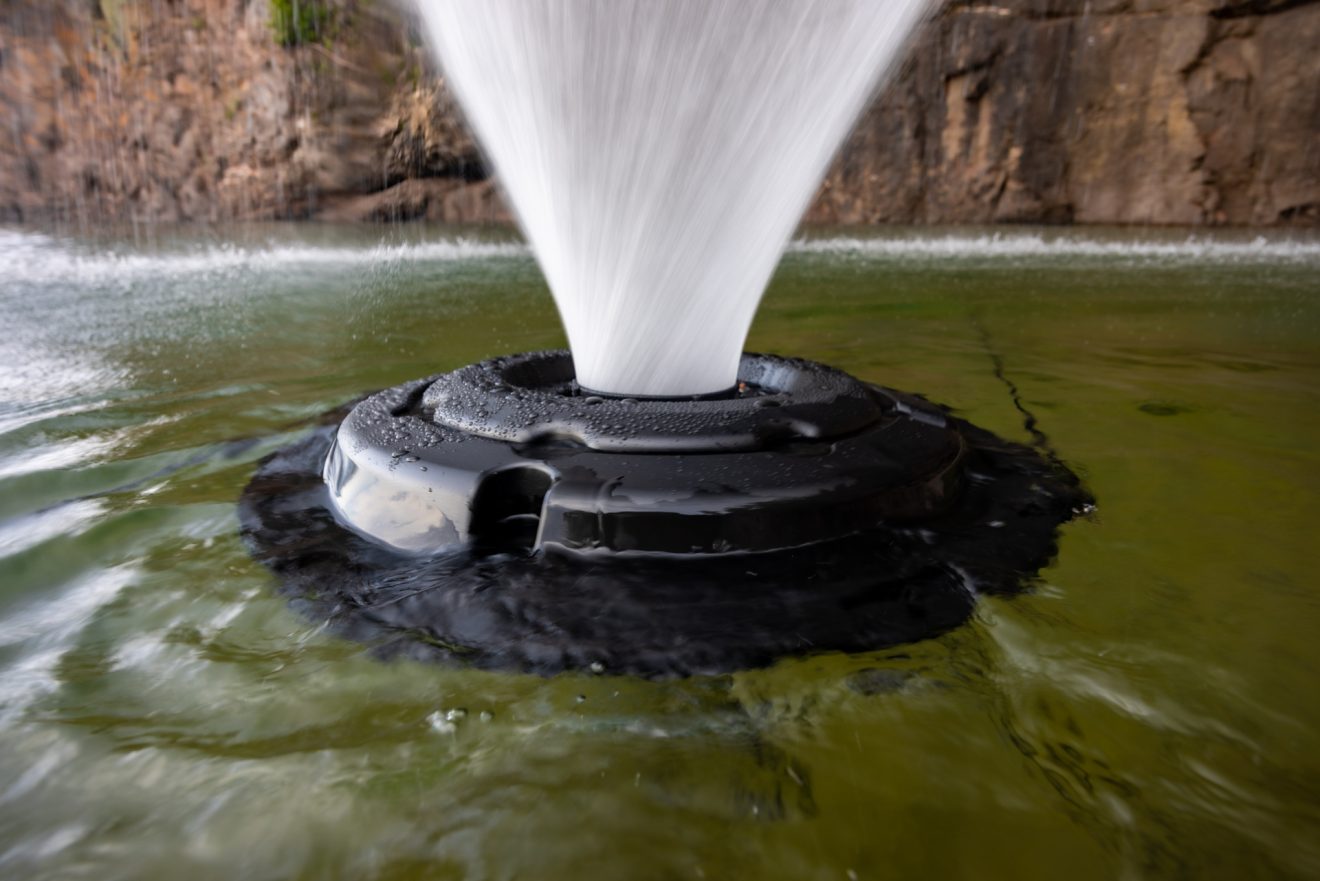

• Float
• Bottom screen
• Control panel with GFCI protection
• Power cord
• Mooring lines
• 2-year warranty on 1/2, 3/4, and 1HP units
• 3-year warranty on 2 and 5HP units (optional 5-year extended warranty available)


• Floating fountain for ponds and lakes, provides powerful aeration with a stunning display.
• Includes pump, control panel, float, filter screen, anchoring rope and your choice of power cord.
• Powered by a durable submersible motor, provides years of no-hassle operation.
• Designed for shallow water operation, works in as little as 15 inches of depth.
• 120V motors are plugged into a standard residential outlet.
• 240V motors are hardwired directly to a panel.
• Three-phase motors are available, contact us for details.
• Backed by a 2 to 3-Year Motor Warranty. Built in Prescott, Wisconsin.

The VFX Series Fountain can be used for many applications, including:

• Golf courses
• Parks and recreational facilities
• Commercial and residential developments
• Marinas and waterfront properties
• Industrial and agricultural ponds

Kasco 2400VFX

1/2 HP Unit

Spray Size : 5 ft High x 15 ft Wide

Recommended Pond Size : 1/8 - 1/4 Acre

Minimum Water Depth : 17.5 Inches

Voltage : 120V

Amps : 5.6 Amps

Watts : 644

----------------------------------------

Kasco 3400VFX

3/4 HP Unit

Spray Size : 5.5 ft High x 21 ft Wide

Recommended Pond Size : 1/4 - 3/4 Acre

Minimum Water Depth : 17.5 Inches

Voltage : 120V

Amps : 7.3 Amps

Watts : 840

----------------------------------------

Kasco 3400HVFX

3/4 HP Unit

Spray Size : 5.5 ft High x 21 ft Wide

Recommended Pond Size : 1/4 - 3/4 Acre

Minimum Water Depth : 17.5 Inches

Voltage : 240V

Amps : 3.7 Amps

Watts : 840

 ----------------------------------------

Kasco 4400VFX

1 HP Unit

Spray Size : 5 ft High x 15 ft Wide

Recommended Pond Size : 1/2 - 1 Acre

Minimum Water Depth : 19 Inches

Voltage : 120V

Amps : 11.3 Amps

Watts : 1300

----------------------------------------

Kasco 4400HVFX

1 HP Unit

Spray Size : 5 ft High x 15 ft Wide

Recommended Pond Size : 1/2 - 1 Acre

Minimum Water Depth : 19 Inches

Voltage : 240V

Amps : 5.7 Amps

Watts : 1300

----------------------------------------

Kasco 8400VFX

2 HP Unit

Spray Size : 5 ft High x 15 ft Wide

Recommended Pond Size : 1 - 2 Acres

Minimum Water Depth : 20 Inches

Voltage : 240V

Amps : 11 Amps

Watts : 2530

----------------------------------------

Kasco 5.1VFX

5 HP Unit

Spray Size : 5 ft High x 15 ft Wide

Recommended Pond Size : 1 - 5 Acres

Minimum Water Depth : 26 Inches

Voltage : 240V

Amps : 20 Amps

Watts : 4600

LED Lights (Optional)

• Choose from warm white or color-changing lights, with the color option offering endless combinations.
• 3 Light Set recommended for 1 HP and smaller units
• 6 Light Set recommended for 2 HP and 3 HP units

Composite LED Lights

• Displays white and includes red, green, blue, and amber lenses with lens caps
• Offered as a 4-fixture kit for non-Kasco units
• Cord lengths up to 500 ft.
• Runs on 120VAC 60Hz power
• Each 11-watt fixture is rated at 910 lumens
• 2-year warranty

Stainless Steel LED Lights

• Daisy-chained stainless steel LED fixtures
• Displays white and includes red, green, blue, and amber lenses with lens caps
• Offered as a 4-fixture kit for non-Kasco units
• Cords up to 500 ft. in length
• Runs on 120V 60Hz power
• Each 19-watt fixture is related to 1,700 lumens
• UL / CSA Listed
• Saltwater compatible
• Packaged for easy installation and convenient shipping
• 3-year warranty

WaterGlow Steel LED Lights

• 9 color options (white, red, green, blue, warm white, amber, yellow, cyan, and magenta)
• 3 rhythmic patterns
• 5 brightness levels
• Can be set to music
• Remote-controlled (up to 300 feet away from the control panel)
• Offered as a 4-fixture kit for non-Kasco units
• Runs on 24VDC at just 5w per fixture
• 2-year warranty

Timers (Optional)

Kasco Control Panels – Key Features

• Energy-efficient automatic control of your unit
• Customizable settings for hands-free operation
• UL and CSA certified for top-level safety and performance
• Equipped with GFCI protection for electrical safety
• Includes a photocell for automatic lighting control
• Features a timer dial for easy programming and scheduling

Control Panel Options

C-25 or C-85 - For 1/2 HP and 3/4 HP Units

C-85 - For 3/4 HP, 1 HP, and 2 HP Units

C-95 - For 5 HP Unit

1/2 HP | 3/4 HP | 1 HP : 2 Years

2 HP | 5 HP: 3 Years

Kasco VFX Series Fountain 1/2, 3/4 & 1 HP Operation & Maintenance Manual

Kasco VFX Series Fountain 2 HP & 5 HP Operation & Maintenance Manual

Kasco VFX Aerating Fountain - 1/2 HP 120V 2400VFX Product Sheet

Kasco VFX Aerating Fountain - 3/4 HP 120V 3400VFX Product Sheet

Kasco VFX Aerating Fountain - 3/4 HP 240V 3400HVFX Product Sheet

Kasco VFX Aerating Fountain - 1 HP 120V 4400VFX Product Sheet

Kasco VFX Aerating Fountain - 1 HP 240V 4400HVFX Product Sheet

Kasco VFX Aerating Fountain - 2 HP 240V 8400VFX Product Sheet

Kasco VFX Aerating Fountain - 5 HP 240V 5.1VFX Float Model

We currently ship only to Lower 48 States of the United States. see Shipping Policy

Once you place an order, payment is pre-authorized and a confirmation with tracking will be emailed within 5–7 business days. Shipping may take longer during peak seasons due to manufacturer availability.

Items must be returned within 30 days after receiving your order. Items must be returned in the same condition in which they were received, be unused and include all the original packaging. see Refund Policy

Refunds are processed within 7 days from when we receive the item(s).

Question:

How do I choose a fountain?

Answer:

To choose a fountain, first decide if your goal is aeration, aesthetics, or both.

• aeration or both, choose an aerating fountain with higher flow and water circulation.

• aesthetics, consider your visual preferences, ensuring your pond meets depth requirements and the display size fits.

Question:

If I want to buy a fountain, how do I choose the horsepower?

Answer:

Horsepower determines the spray pattern size. Choose based on your pond’s depth, size, and budget. Most fountains fit ponds ¼ acre or larger, but avoid overspray. Select horsepower based on the look you want and what you can spend.

Question:

Do I need to hire someone to install my fountain?

Answer:

If there's no power source near your pond, hire a licensed electrician to install one. Once power is set up, fountain installation is simple: the unit floats, anchors with rope and cinder blocks, and plugs in via a submersible cord. Many customers install it themselves to save money, depending on available resources.

Question:

How do I choose between 110-120V and 220-240V?

Answer:

If your pond's power source is over 70 feet from the main breaker, use 210–240V to ensure consistent fountain performance. Lower voltage at long distances can cause the fountain to run poorly or shut off. Make sure your setup can handle higher voltage.

Question:

Are lights automatically included?

Answer:

Lights are sold separately but can be added anytime. They easily snap onto the fountain and are highly recommended.

Question:

Why is the power cord so expensive?

Answer:

The power cord cost is based on material and gauge size. It uses copper or stainless steel wire, ranging from 14-gauge to 4-gauge, depending on the fountain’s size and cord length.
