Airmax PondSeries Pond Fountain |3 Pattern with Control Panel

• PondSeries Stainless Steel Submersible Motor
• 15V Plug & Play Control Panel (Optional)
• Power Cord w/ Disconnect (Optional)

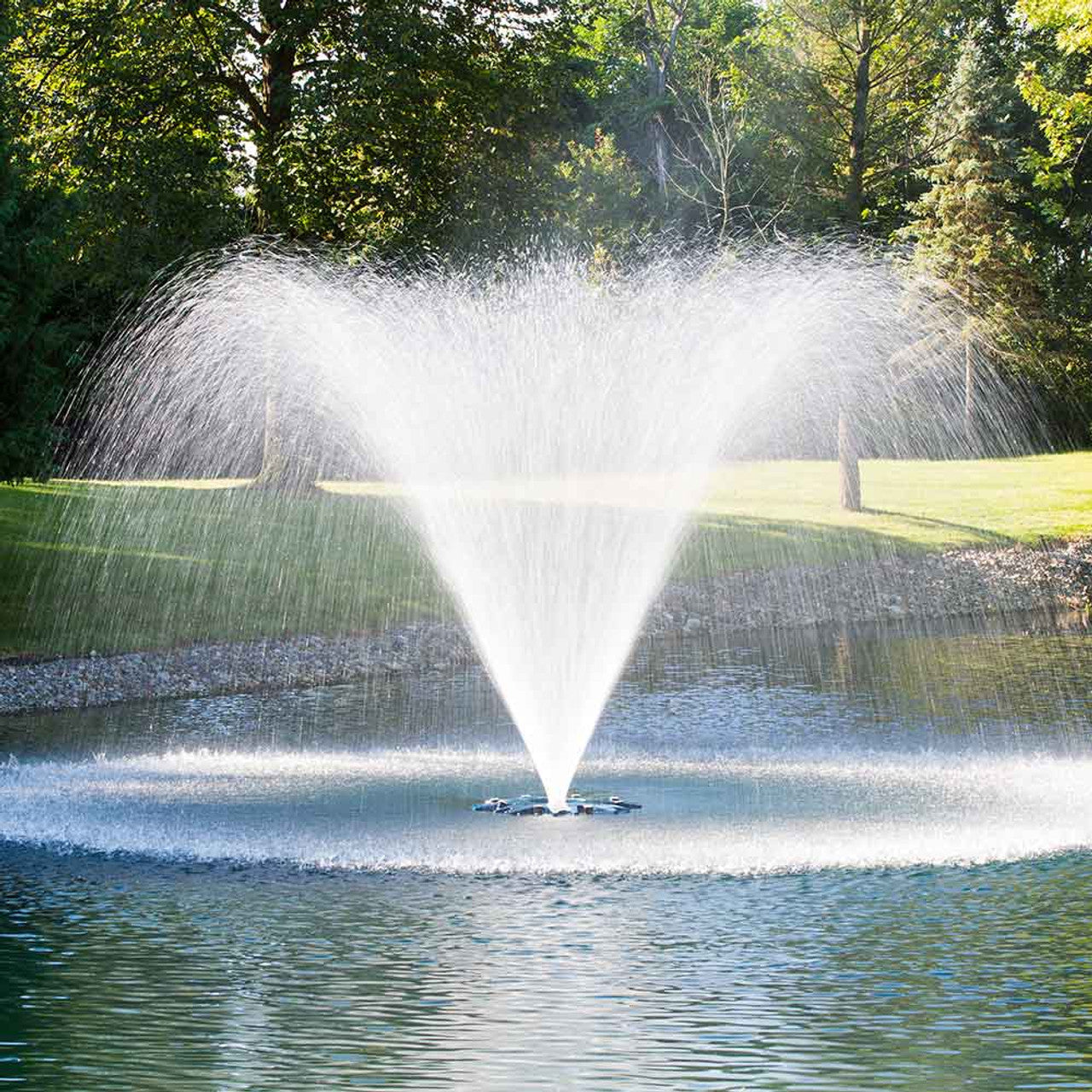

• Classic Spray Pattern

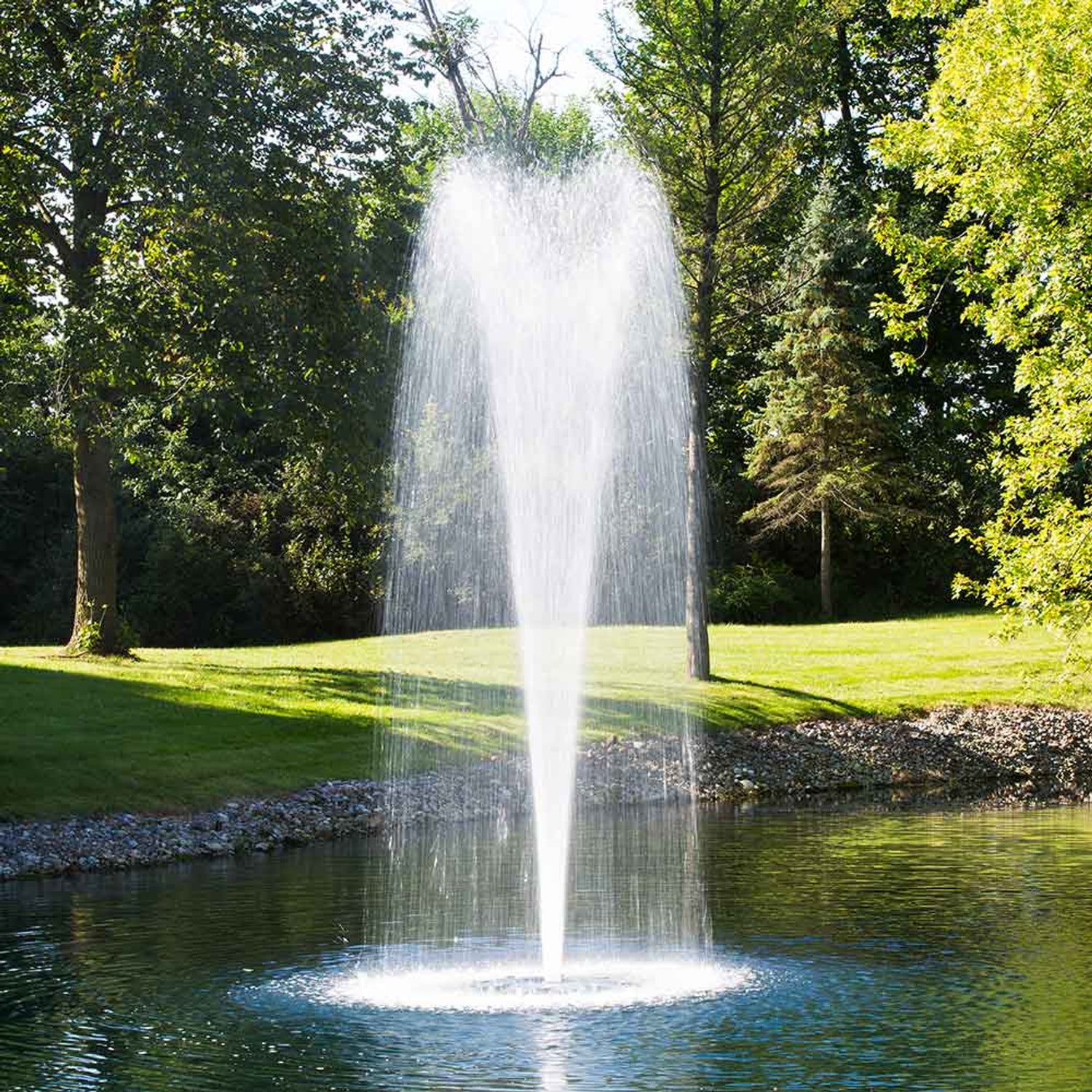

• Trumpet Spray Pattern

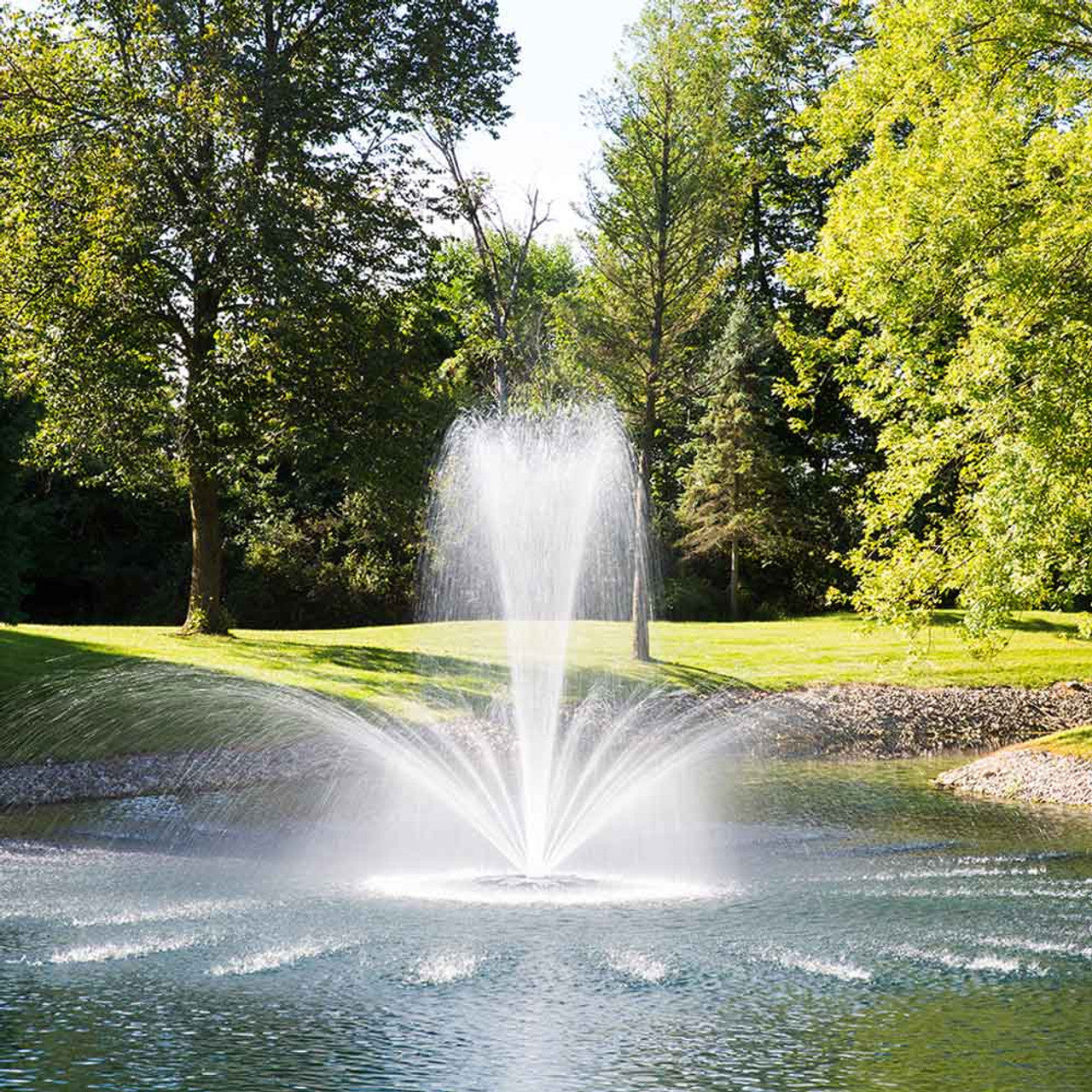

• Crown & Trumpet Spray Pattern

• Efficient and elegant design
• Operates in shallow water — as little as 36 inches
• Powerful ½ HP, 1 HP, 2HP stainless steel motors
• Includes 3 unique spray patterns
• Optional nozzles available for additional customization
• Tool-free assembly for quick and easy setup
• Quick-change nozzles for hassle-free adjustments
• 3-year comprehensive warranty for peace of mind
• Optional Airmax Fountain Lights create a vibrant evening display
• Low maintenance for easy ownership
• Ideal for enhancing water features with beauty and function

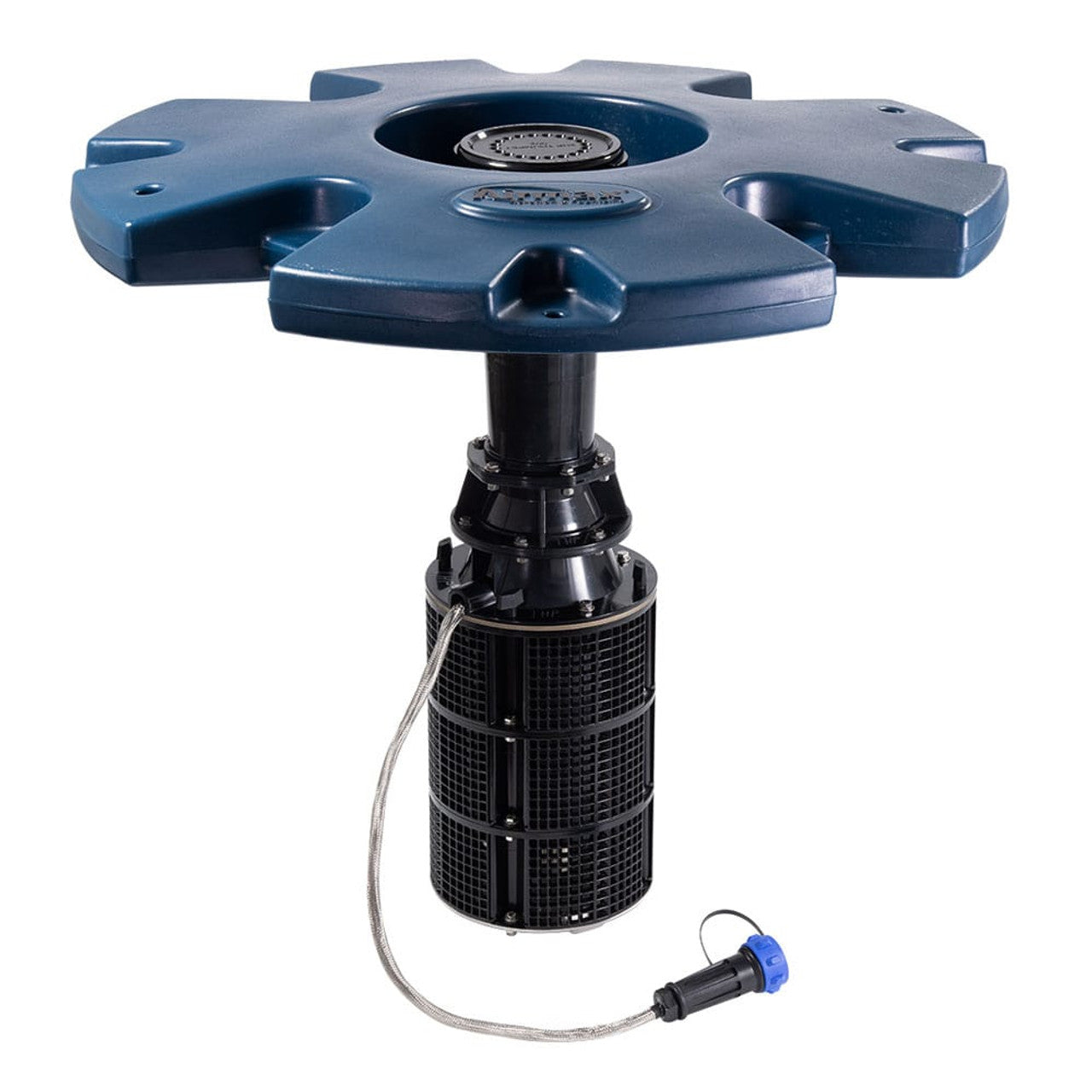

1/2 HP

Included Nozzles Spray Sizes :

Classic : 5.5 ft High x 13 ft Wide

Trumpet : 12.5 ft High x 5 ft Wide

Crown : 4.5 ft High x 32 ft Wide

Recommended Pond Size : up to 1/4 Acre & 6ft Deep

Minimum Water Depth : 36 Inches

Voltage : 115V | 230

Amps : 115 Volts | 12 Amps
230 Volts | 6 Amps

Watts : 1,380-Watts

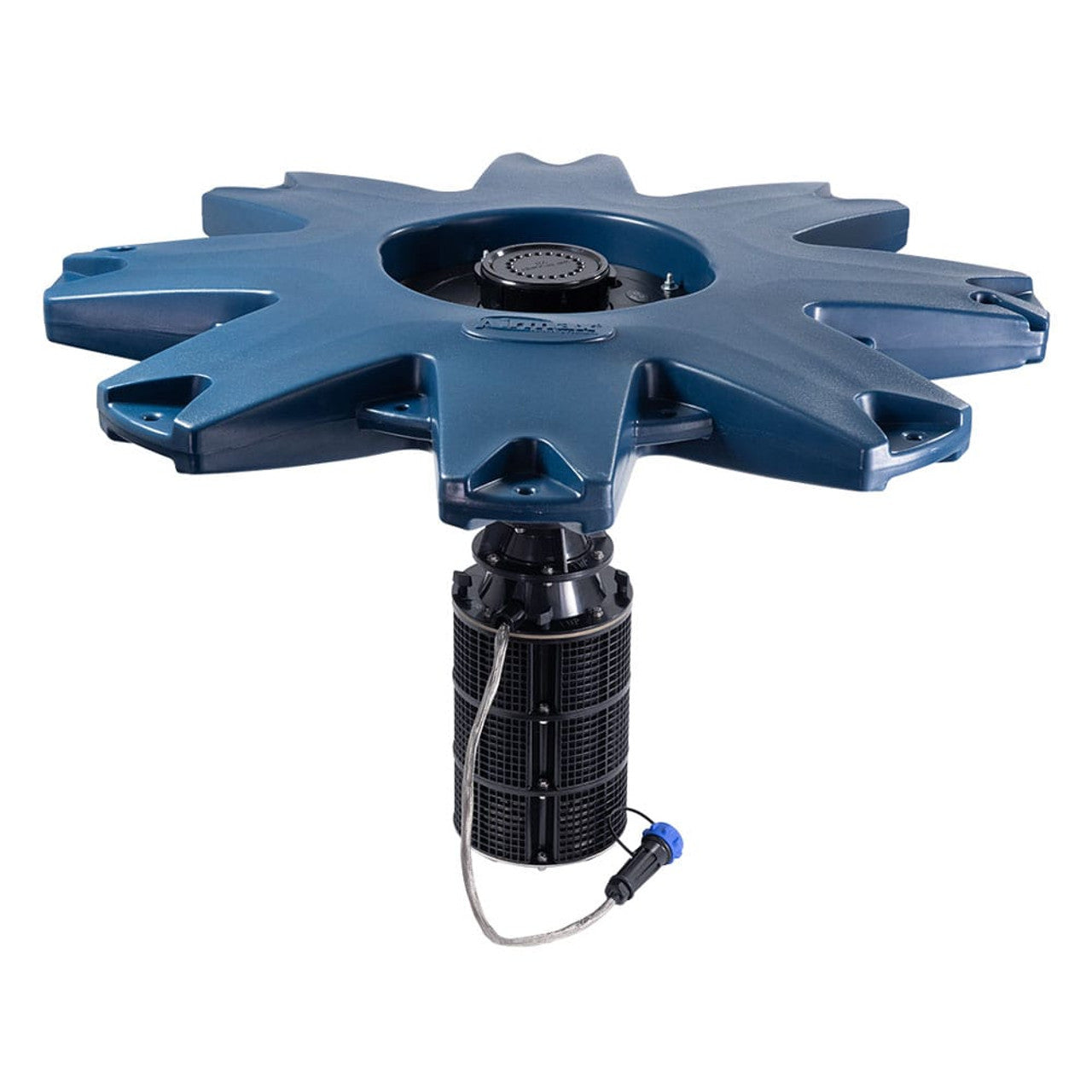

1 HP

Included Nozzles Spray Sizes :

Classic : 9.5 ft High x 23 ft Wide

Trumpet : 16 ft High x 6 ft Wide

Crown : 4.5 ft High x 32 ft Wide

Recommended Pond Size : up to 1/2 Acre

Minimum Water Depth : 36 Inches

Voltage : 230V

Amps : 7 Amps

Watts : 1610-Watts

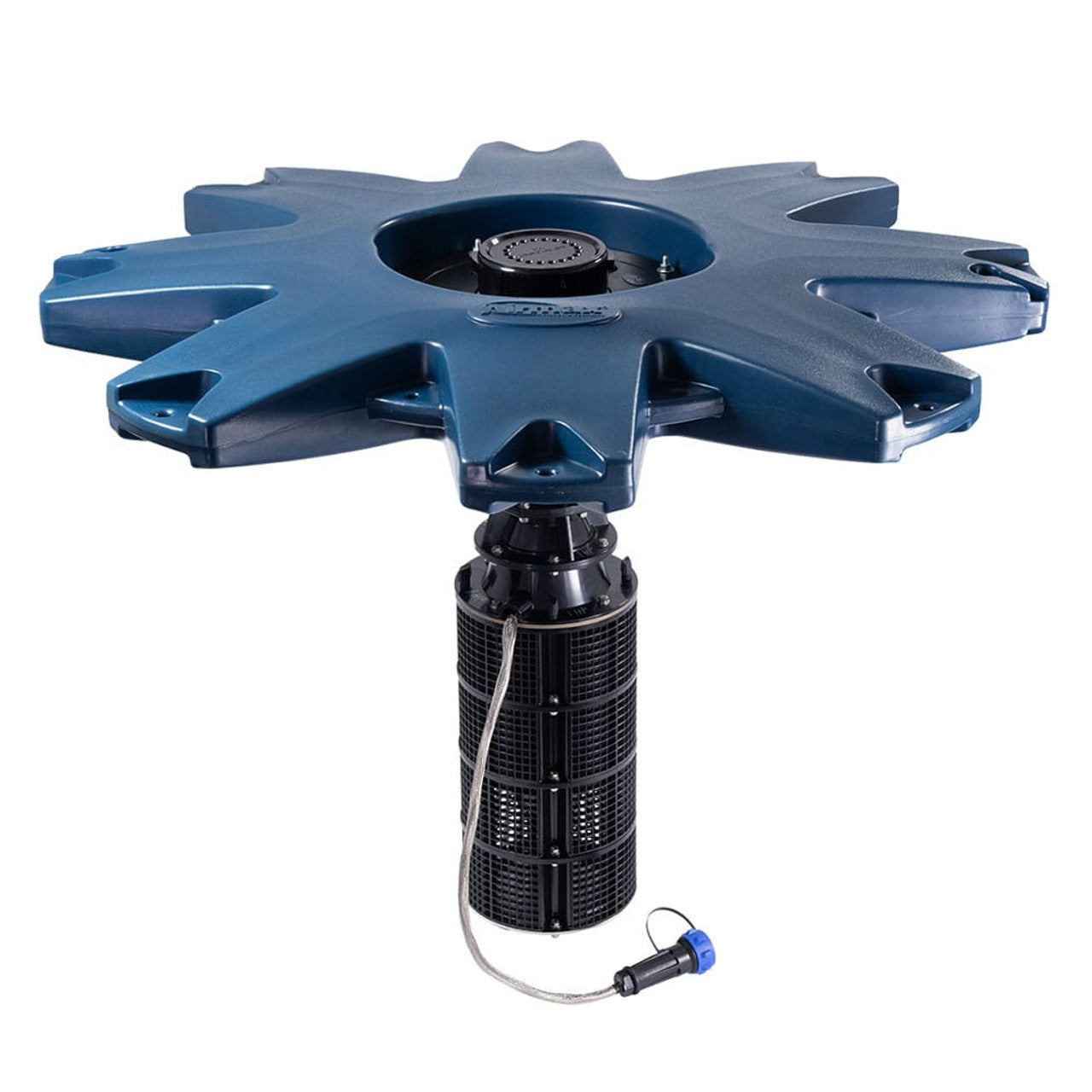

2 HP

Included Nozzles Spray Sizes :

Classic : 14 ft High x 28 ft Wide

Trumpet : 20 ft High x 9 ft Wide

Crown : 6.5 ft High x 38 ft Wide

Recommended Pond Size : up to 1 Acre

Minimum Water Depth : 36 Inches

Voltage : 230V

Amps : 12 Amps

Watts : 2,760-Watts

Airmax® RGBW Color-Changing LED Light Sets turn your EcoSeries™, PondSeries™, or LakeSeries™ fountain into a stunning evening display. Choose from vibrant colors like white, blue, green, and red to match any mood with the push of a button.

Easy Clamp-On Lights :

RGBW LED lights install tool-free on the EcoSeries using a clamp-on design with tension screws. Each set includes a braided stainless-steel power lead and is available with 100'–400' cords in Standard, PolyFlex, or Stainless Steel options.

Key Features:

• Wireless remote (200 ft range) – Control colors, brightness, and transitions
• 9 preset programs – Instantly create custom lighting scenes
• Sync up to 4 light sets with one remote
• Tool-free installation – Clamps directly to Airmax fountain floats
• Above-waterline design – Brighter light with less maintenance
• Durable stainless-steel braiding – Protects wiring
• Underwater disconnect & strain relief – Available in 100–600 ft cord lengths
• Energy-efficient 6W LEDs – High output, low power use
• Available in 2, 4, 8, 9, or 12-light sets – Fits any fountain setup

115V Plug & Play Control Panel

The included high-quality, 115-Volt/15-Amp Plug & Play Control Panel has two outlets to power the fountain and optional light kits. Programmable 24-hour dual electrical digital timers allow for custom timing of fountain and lighting run times.

Fountain & Control Panel - 3-Year

Airmax PondSeries Fountain Manual

Airmax Fountain Nozzles Installation Instructions

Airmax Control Panels Installation Instructions

We currently ship only to Lower 48 States of the United States. see Shipping Policy

Once you place an order, payment is pre-authorized and a confirmation with tracking will be emailed within 5–7 business days. Shipping may take longer during peak seasons due to manufacturer availability.

Items must be returned within 30 days after receiving your order. Items must be returned in the same condition in which they were received, be unused and include all the original packaging. see Refund Policy

Refunds are processed within 7 days from when we receive the item(s).

Question:

How do I choose a fountain?

Answer:

To choose a fountain, first decide if your goal is aeration, aesthetics, or both.

• aeration or both, choose an aerating fountain with higher flow and water circulation.

• aesthetics, consider your visual preferences, ensuring your pond meets depth requirements and the display size fits.

Question:

If I want to buy a fountain, how do I choose the horsepower?

Answer:

Horsepower determines the spray pattern size. Choose based on your pond’s depth, size, and budget. Most fountains fit ponds ¼ acre or larger, but avoid overspray. Select horsepower based on the look you want and what you can spend.

Question:

Do I need to hire someone to install my fountain?

Answer:

If there's no power source near your pond, hire a licensed electrician to install one. Once power is set up, fountain installation is simple: the unit floats, anchors with rope and cinder blocks, and plugs in via a submersible cord. Many customers install it themselves to save money, depending on available resources.

Question:

How do I choose between 110-120V and 220-240V?

Answer:

If your pond's power source is over 70 feet from the main breaker, use 210–240V to ensure consistent fountain performance. Lower voltage at long distances can cause the fountain to run poorly or shut off. Make sure your setup can handle higher voltage.

Question:

Are lights automatically included?

Answer:

Lights are sold separately but can be added anytime. They easily snap onto the fountain and are highly recommended.

Question:

Why is the power cord so expensive?

Answer:

The power cord cost is based on material and gauge size. It uses copper or stainless steel wire, ranging from 14-gauge to 4-gauge, depending on the fountain’s size and cord length.
